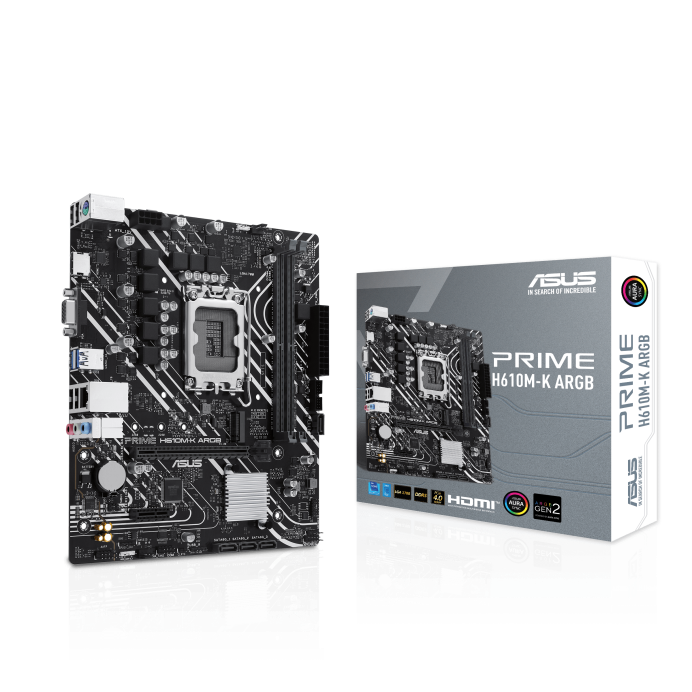

مادربرد ایسوس مدل PRIME H610M-K D5 ARGB

ایسوس

اینتل

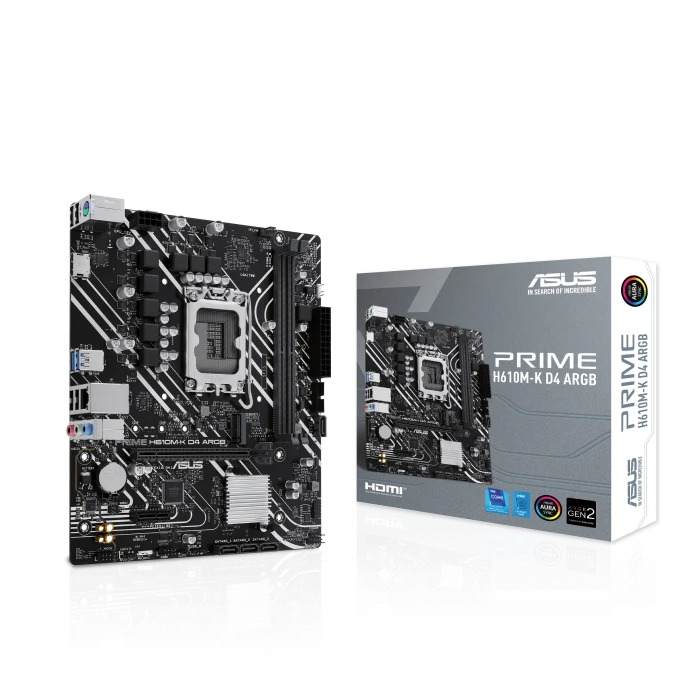

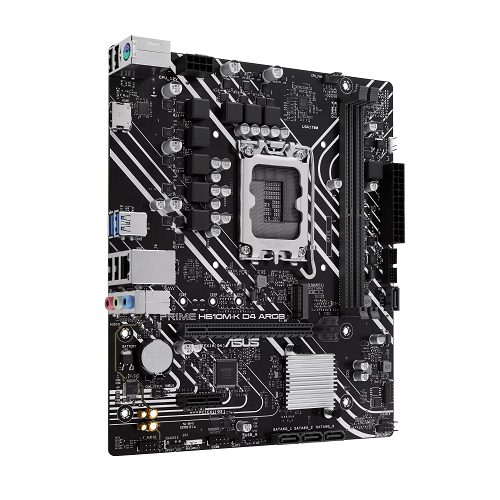

PRIME H610M-K D4

LGA1700

Intel® H610 Chipset

mATX

بلی

1 x D-Sub port

1x HDMI (2.1)

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

1 x PCIe 3.0 x1 slot

1 x PCIe 4.0 x16 slot

Intel® 13th & 12th Gen Processors

Intel® H610 Chipset

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

1 x Realtek 1Gb Ethernet

4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

خیر

3 x Audio jacks

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports up to 24-Bit/192 kHz playback

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

2x USB 3.2 Gen 1 Type A

4x USB 2 Gen Type A

1 x 10-1 pin System Panel header

1 x 24-pin Main Power connector

1 x 4-pin Chassis Fan header

1 x 4-pin CPU Fan header

1 x 8-pin +12V Power connector

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key M)

1 x RGB header

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x USB 2.0 header supports additional 2 USB 2.0 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

4 x SATA 6Gb/s ports

2 x AURA Addressable Gen 2 headers

128 Mb Flash ROM

UEFI AMI BIOS
